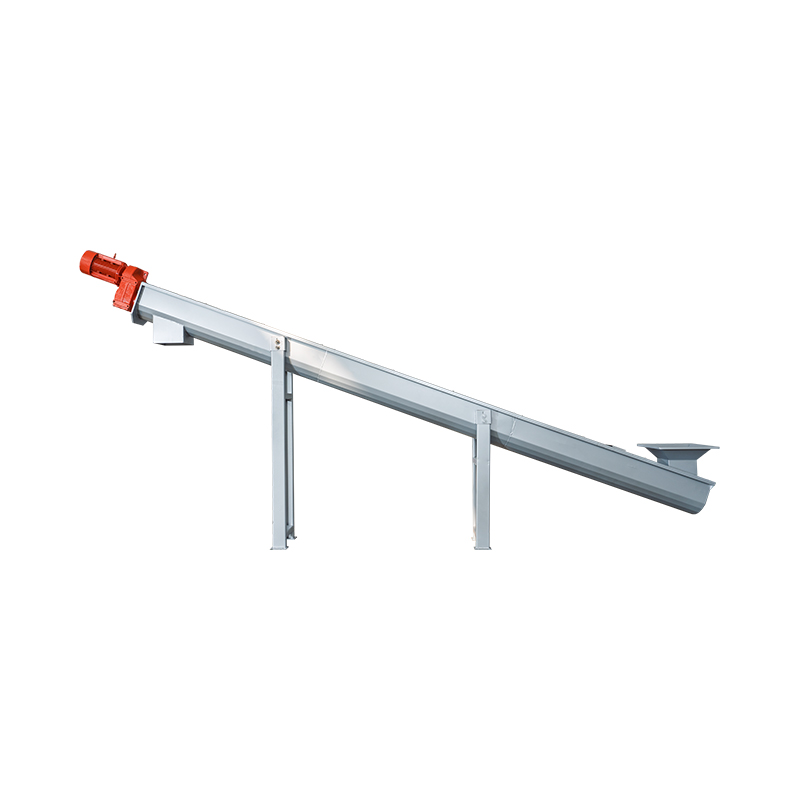

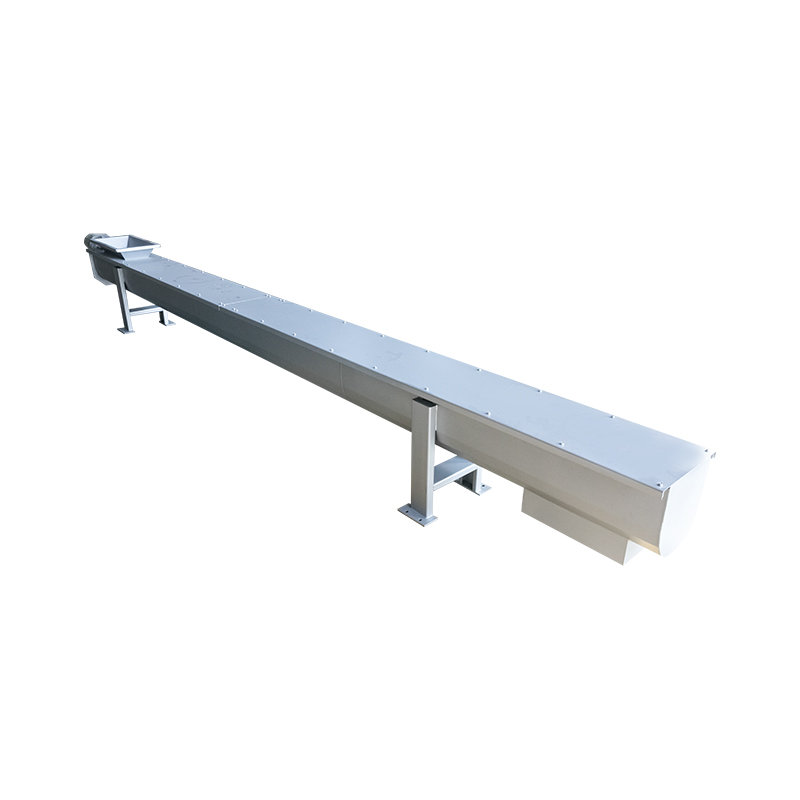

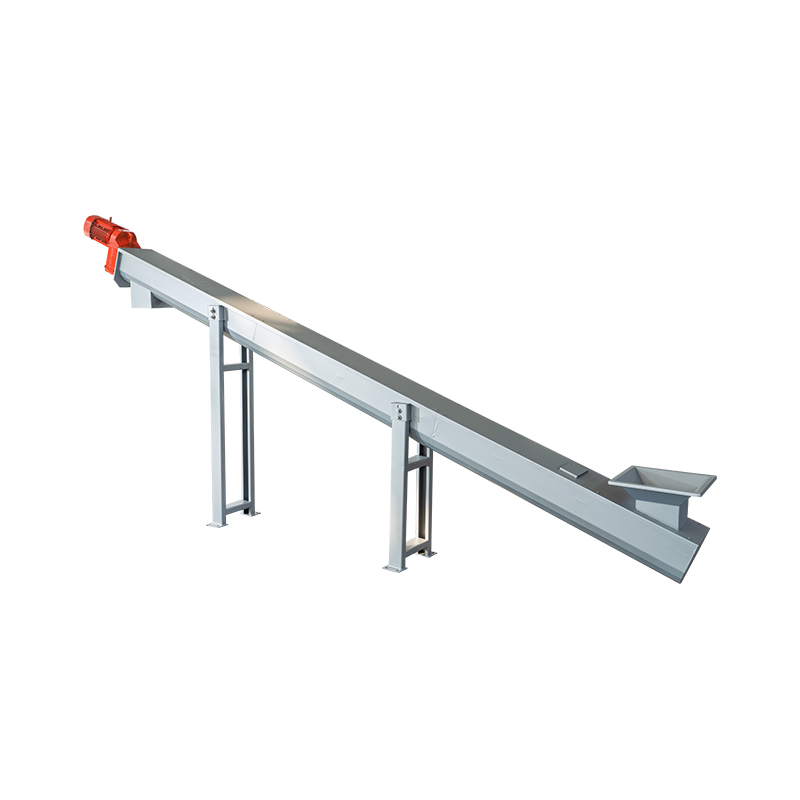

Shaftless/shafted screw conveyors are suitable for screenings handling in municipal wastewater treatment plants, residential sewage pretreatment facilities, municipal stormwater and sewage pumping stations, and water treatment plants. They are primarily used in conjunction with equipment such as screens or dewatering machines to transport screenings or dewatered sludge.

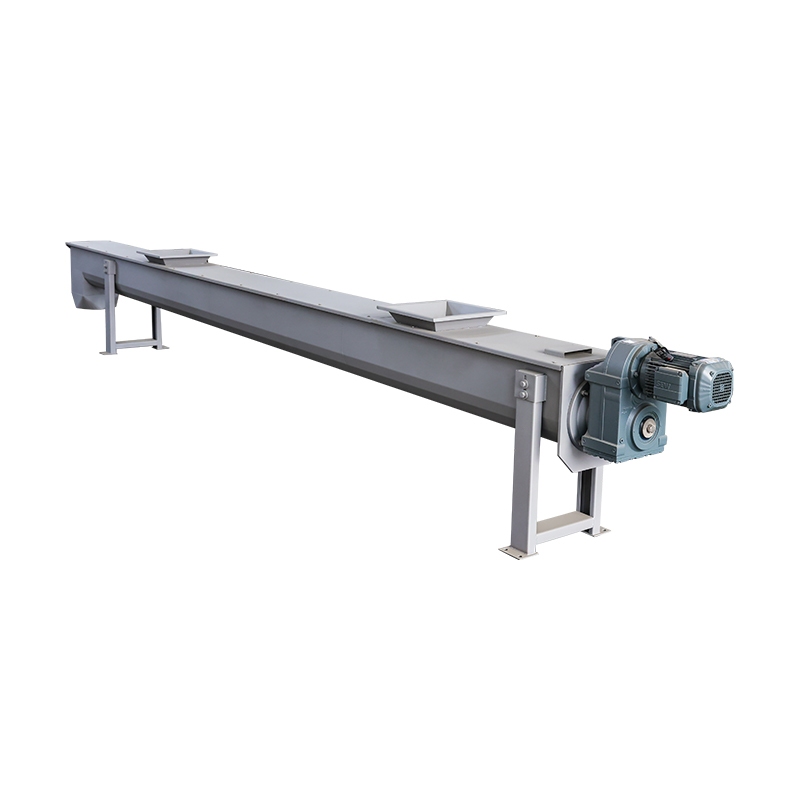

· The drive unit employs a shaft-mounted parallel-shaft helical gear reducer, featuring a compact structure and smooth, safe operation;
· The U-shaped trough incorporates an inner lining, offering high wear resistance, extended service life, and easy replacement;
· Conveying direction is determined by the spiral direction of the auger blades and the motor's rotation, enabling bidirectional conveying;
· Utilizes a wide-channel conveying system to prevent blockages, ensuring reliable operation, low noise, and convenient maintenance.

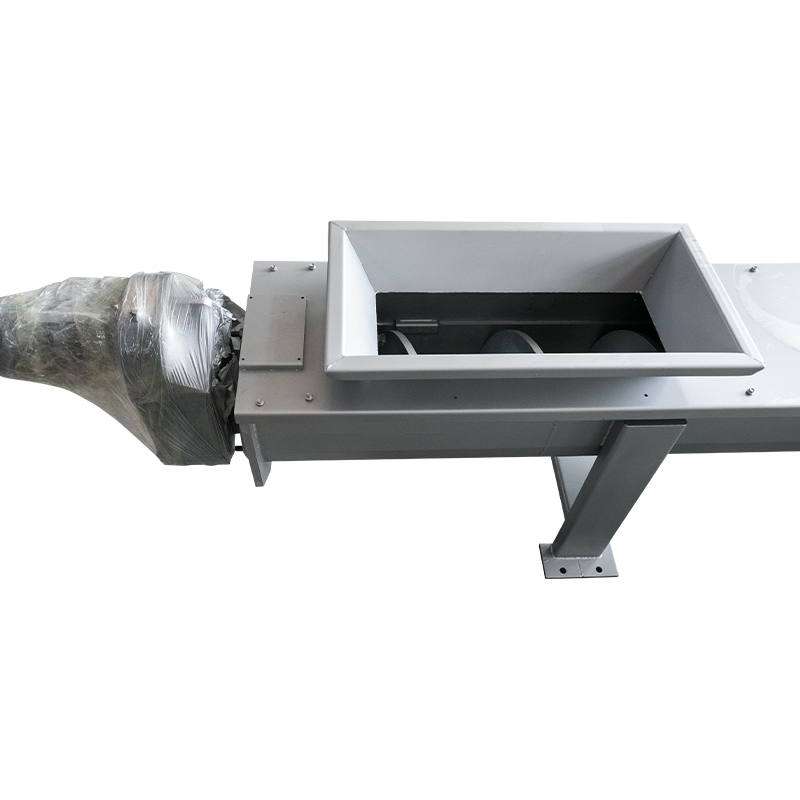

This equipment employs a continuous trough belt conveyor. Materials are discharged onto the conveyor from a screen or dewatering machine outlet. Driven by an electric motor, the materials are transported by spiral blades from one end to the other. At the terminal end, the conveyor interfaces with a waste cart for subsequent processing.

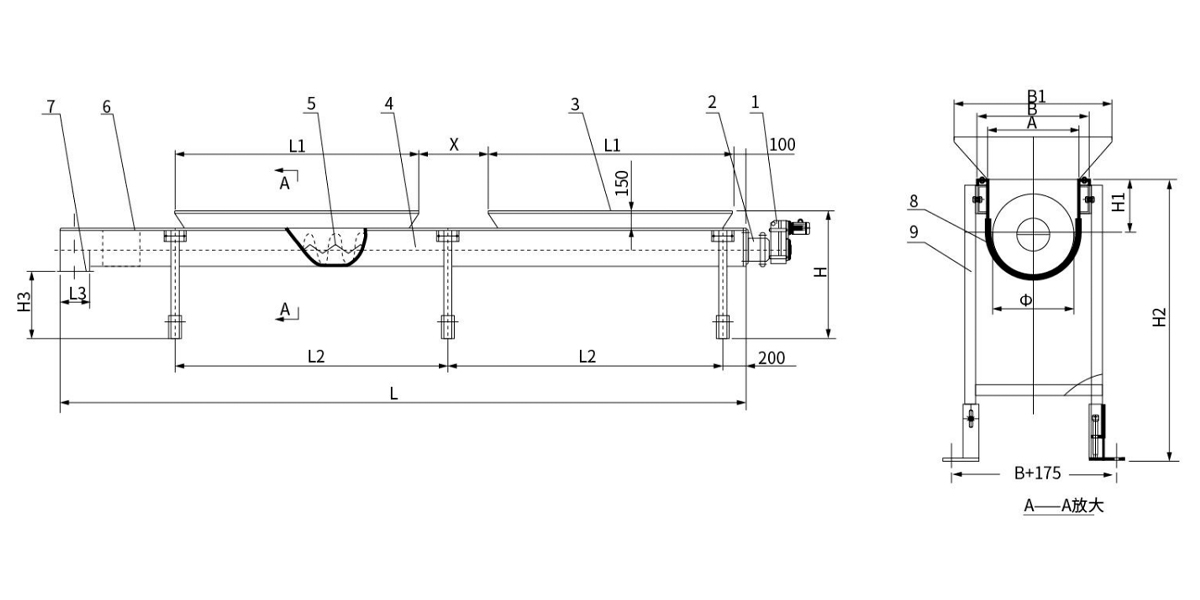

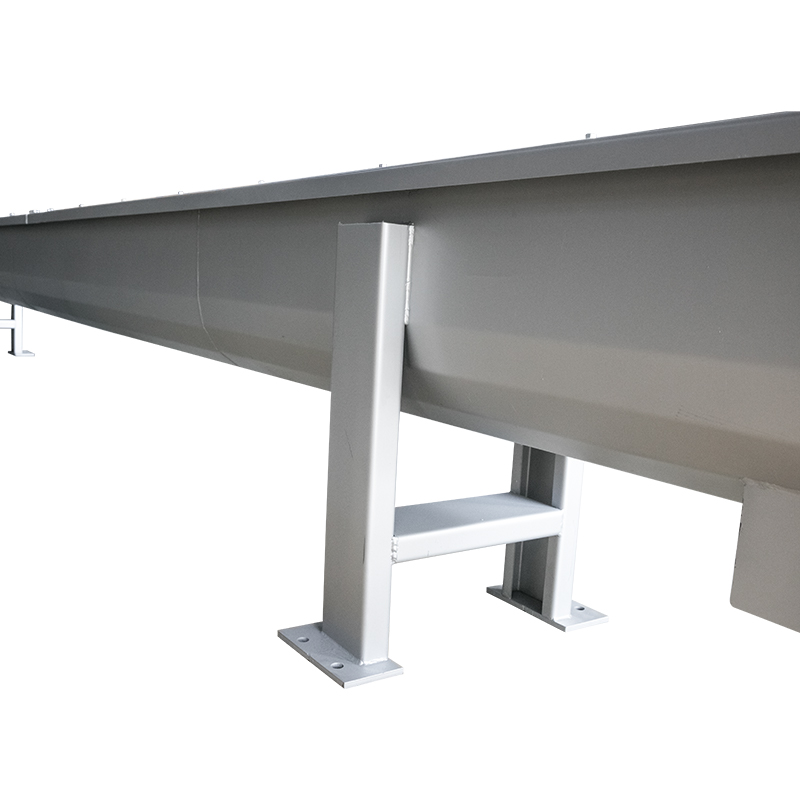

| 1 | Drive Unit | 6 | Cover Plate |
| 2 | Bearing Housing | 7 | Discharge Outlet |
| 3 | Feed Inlet | 8 | Wear-Resistant Lining |
| 4 | U-Shaped Housing | 9 | Support Frame (Height-Adjustable) |
| 5 | Screw Blade |
| Parameters/Model | LS-200W | LS-250W | LS-300W | LS-350W | LS-400W | |||
| Screw Nominal Diameter D (mm) | 200 | 250 | 300 | 350 | 400 | |||
| Screw Diameterφ(mm) | 185 | 235 | 285 | 320 | 385 | |||
| Flow Rate Q (m³/h) |
Installation Angle α(°) |
0° | 1.5 | 3.6 | 6 | 8.4 | 11.7 | |
| 5° | 1.35 | 3.24 | 5.4 | 7.56 | 10.53 | |||
| 15° | 1.05 | 2.52 | 4.2 | 5.88 | 8.19 | |||
| 25° | 0.9 | 2.16 | 3.6 | 5.04 | 7.02 | |||
| Screw Rotation Speed n (r/min) | 12~16 | |||||||
| Motor Power N (kW) | 0.75~5.5(Depending on L and α) | |||||||
| Installation Dimensions (mm) |
Wear-resistant liner diameter A | φ+40 | ||||||
| Housing diameter B | φ+110 | |||||||
| Discharge opening width B1 | Compatible with corresponding equipment | |||||||
| Screw length L | Depending on user requirements | |||||||
| Feed inlet length L1 | Compatible with corresponding equipment | |||||||
| Distance between brackets L2 | (L-1000)/2~L-71000)/3 | |||||||
| Discharge opening width L3 | 250 | 250 | 300 | 350 | 400 | |||
| Overall equipment height H | Compatible with corresponding equipment | |||||||
| Height from screw shaft center to cover plate H1 | 140 | 165 | 188 | 210 | 240 | |||
| Cover plate height H2 | H-150 | |||||||
| Lower housing height H3 | Compatible with corresponding equipment | |||||||

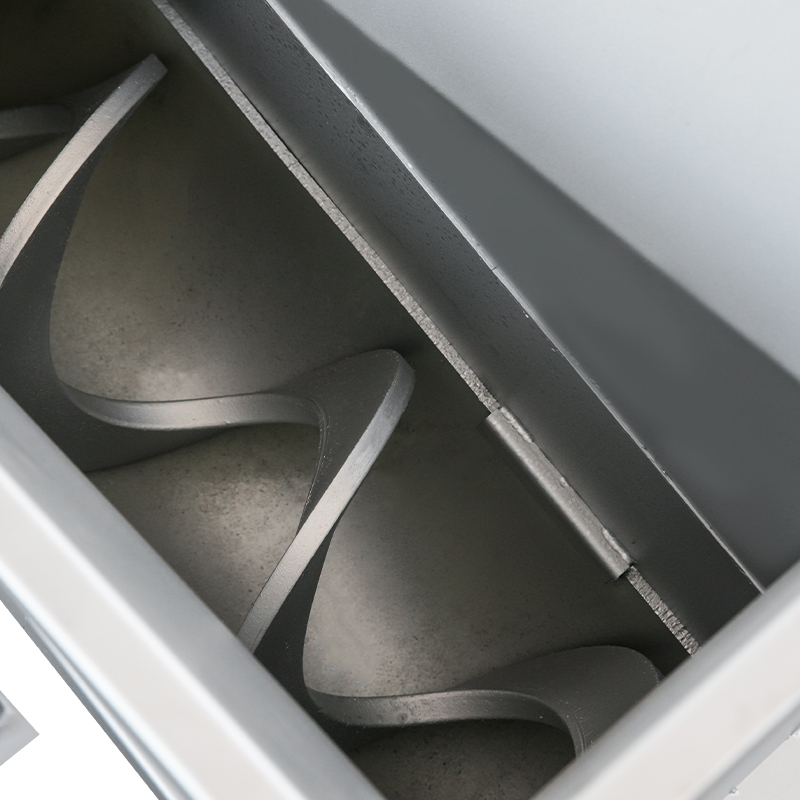

Shaftless Screw Conveyor: Primarily used for conveying materials that are prone to entanglement and have high viscosity, effectively addressing clogging issues.
Application Scope:
1. Environmental Water Services: Transportation of dewatered sludge, screenings, and grit.
2. Industrial Sector: Municipal solid waste, food waste, chemical slurries, and viscous chemical raw materials.
3. Building Materials Industry: Powdered materials such as cement raw meal and fly ash.
With a strong technical foundation and an ISO-certified quality system, Hengye helps clients across various industries enhance treatment efficiency, reduce operating costs, and meet global environmental standards.
