The belt filter press is a continuous, high-efficiency sludge treatment device that integrates concentration and filtration functions. It is suitable for dewatering and separating various settled or suspended materials, and is widely applied in sludge dewatering across industries such as chemical engineering, metallurgy, mining, food processing, papermaking, municipal wastewater treatment, and drainage.
· The equipment integrates sludge thickening and filter pressing into a single process, reducing investment costs for thickening tanks.
· High degree of automation with a pneumatic filter belt alignment device.
· Utilizes thickened filtrate or recycled water for rinsing, lowering operational expenses.
· Simple process flow with strong adaptability, rational structure, compact footprint, short sludge retention time, and high treatment efficiency.

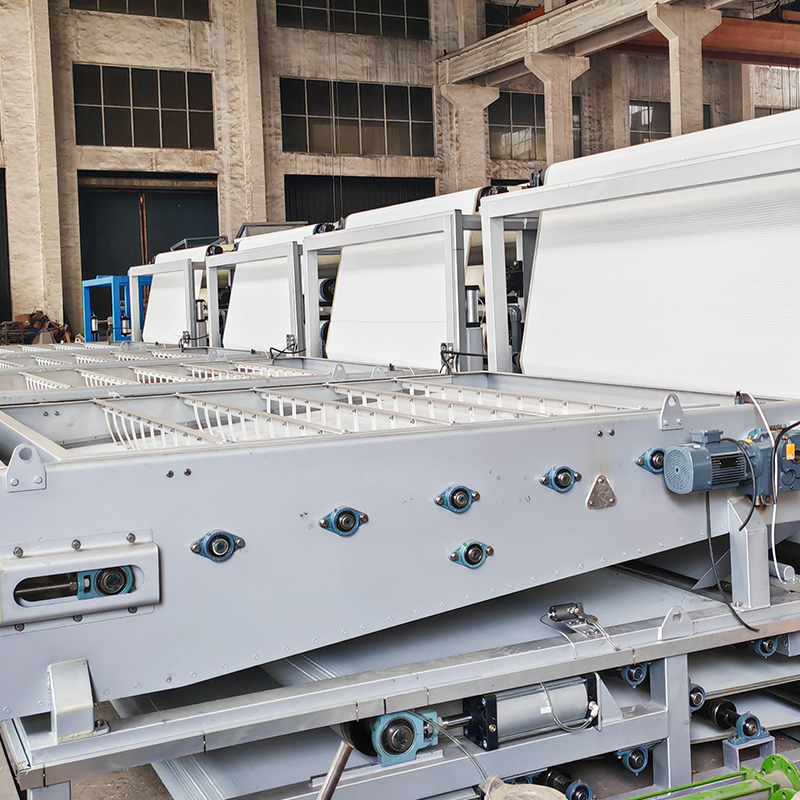

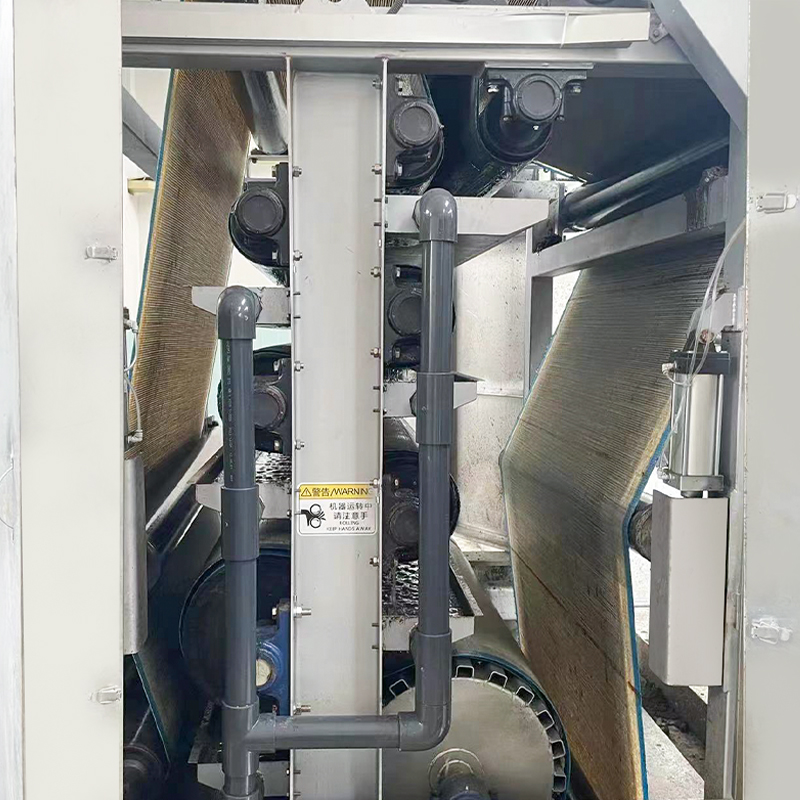

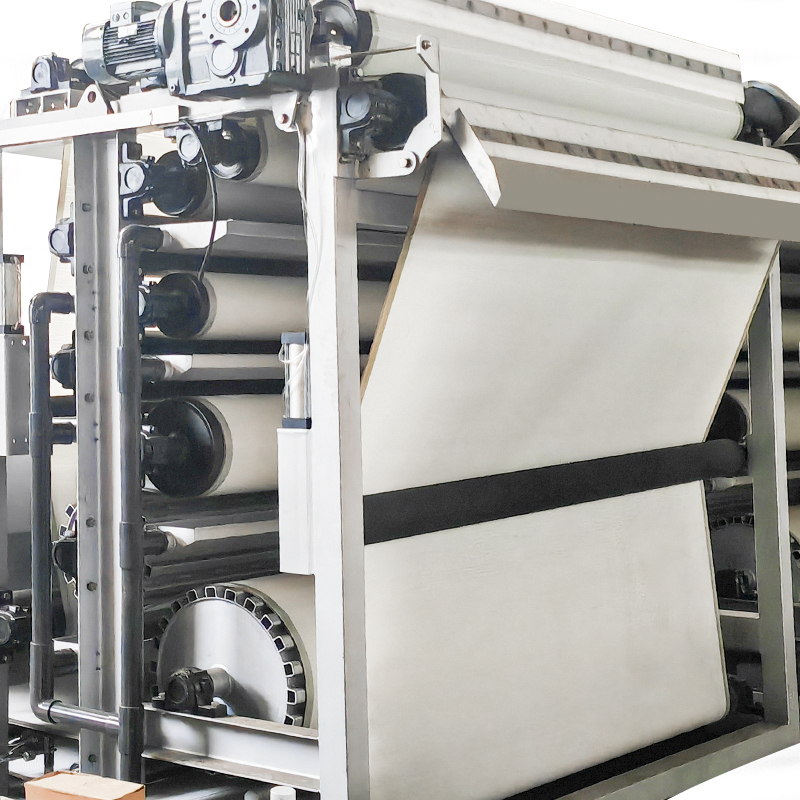

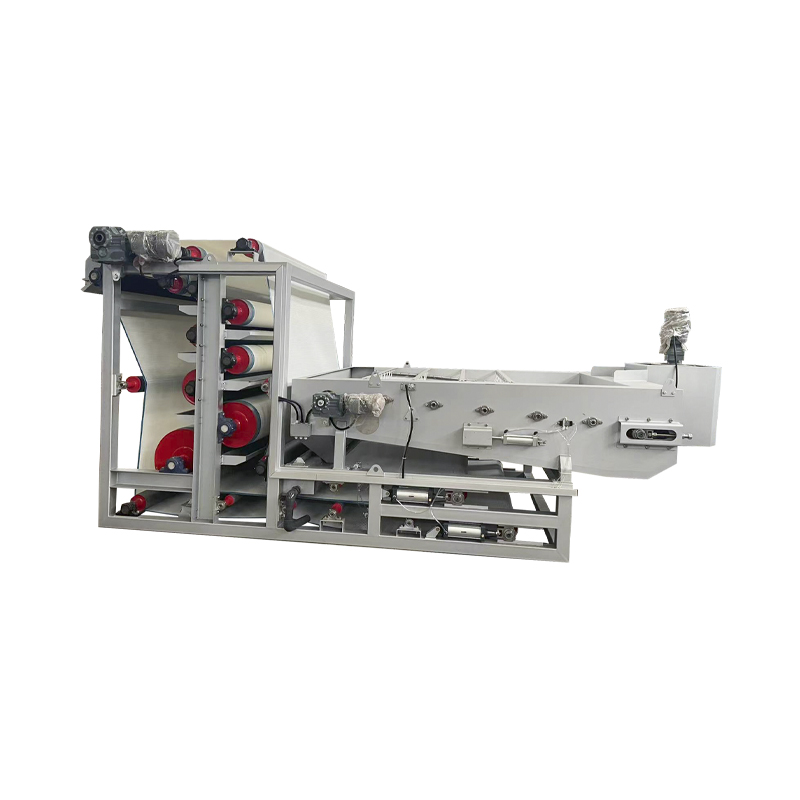

The belt filter press primarily consists of a frame, power transmission unit, pre-press dewatering section, pressing dewatering section, upper/middle/lower filter belts, filter belt washing device, guide rollers, filter cake discharge device, alignment device, tensioning device, flocculant mixing device, filtrate collection tray, and electrical control cabinet.

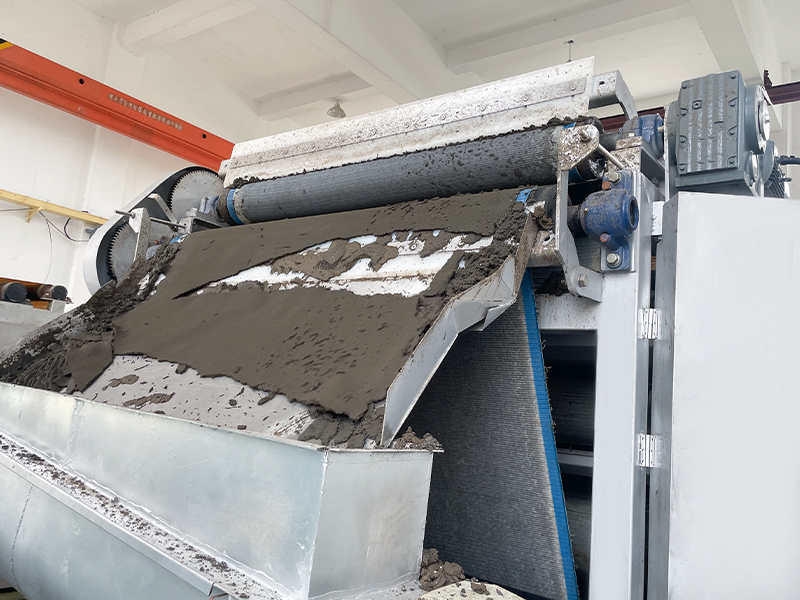

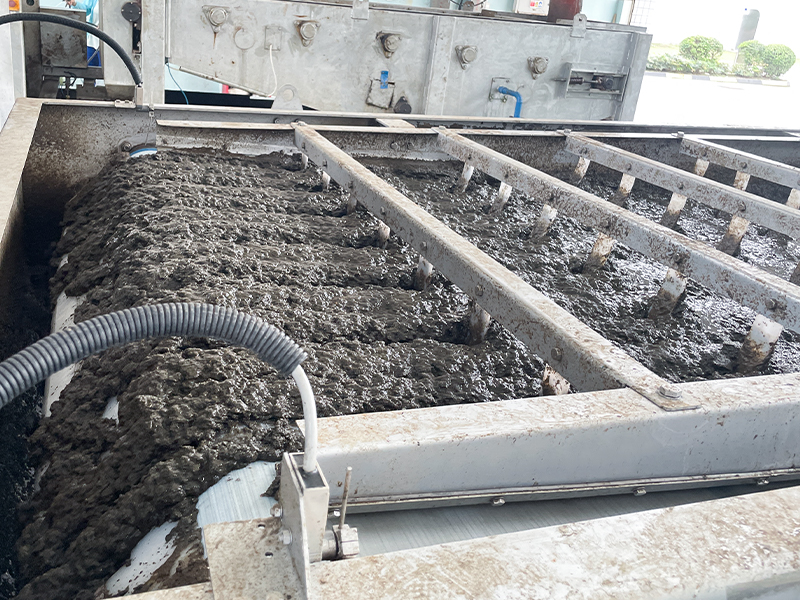

The operating principle of the belt filter press is as follows: Flocculated suspended solids and sludge mixed with flocculant enter the dewatering mechanism. Under the combined effects of gravity and compression, sludge undergoes inversion to remove most free water in the concentration section. The pre-dewatered sludge is evenly distributed onto the filter belt via a feed hopper, entering the double-layer filter belt gap for pre-press dewatering. It then passes through a series of press rolls arranged in descending diameter order, subjecting the filter cake to progressively increasing compression and shear forces to remove additional free water and partial capillary water. The dewatered material is finally discharged through the outlet at the tail end of the machine.

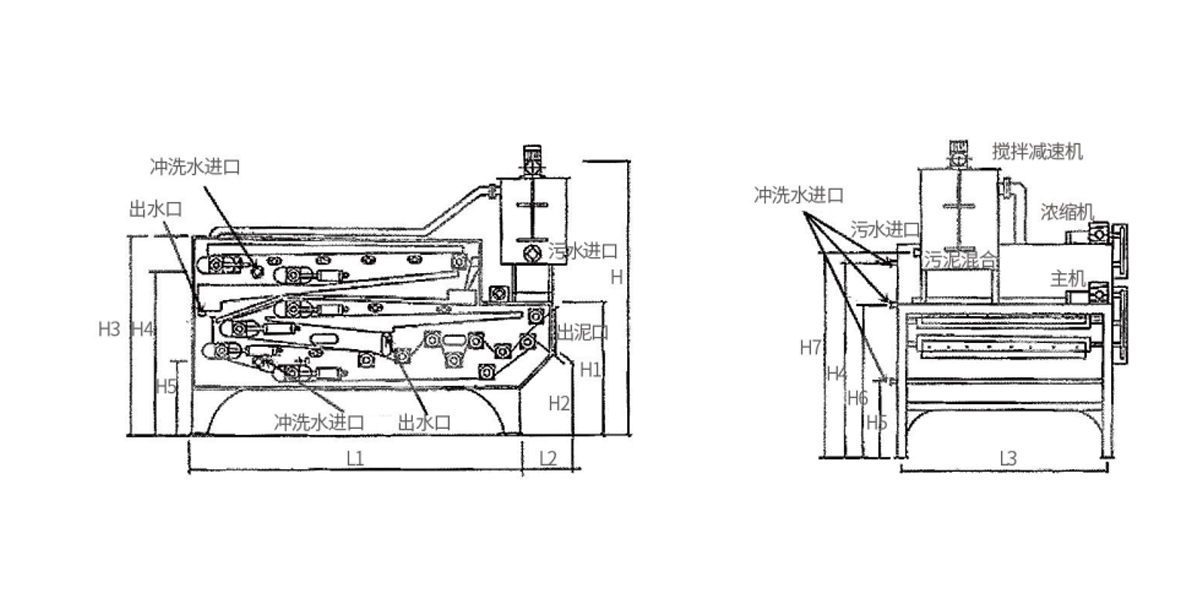

Note: This diagram is for installation purposes only and is not intended for use as construction drawings. The foundation reinforcement configuration and specific concrete requirements shall be determined by the user based on local soil conditions.
| Model | Belt width (mm) |
Filter Belt Line Speed (m/min) |
Feed Moisture Content (%) |
Moisture Content of Filter Cake (%) |
Total processing capacity (m³/h) |
Total Flushing Water Volume (m³/h) |
Equipment Dimensions (L×W×H)(mm) |
Rinse Water Pressure (MPa) |
| ZBDY-500 | 500 | 1.0~5.0 | ≈99 | ≤80 | 2~5 | 8~10 | 3050×1100×2800 | ≥0.5 |
| ZBDY-1000 | 1000 | 7~10 | 12~15 | 3050×1600×2800 | ≥0.5 | |||
| ZBDY-1500 | 1500 | 8~15 | 15~20 | 3050×2100X2800 | ≥0.5 | |||
| ZBDY-2000 | 2000 | 10~20 | 20~22 | 3050×2600×2800 | ≥0.5 | |||
| ZBDY-2500 | 2500 | 15~30 | 25~32 | 4050×3150×2960 | ≥0.5 | |||
| The above parameters are provided for user reference. Specific configurations and parameters must be adapted to the actual conditions on-site. | ||||||||
 |
 |
 |
With a strong technical foundation and an ISO-certified quality system, Hengye helps clients across various industries enhance treatment efficiency, reduce operating costs, and meet global environmental standards.
