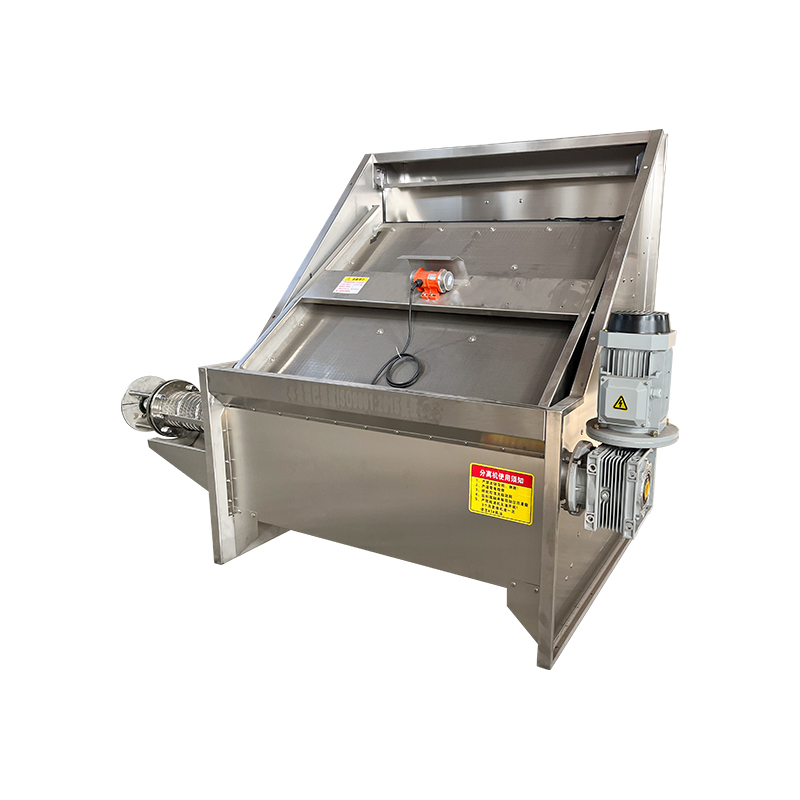

Inclined Screen Solid-Liquid Separator

· Compact design with minimal footprint, flexible and convenient installation. Can operate independently or in parallel with multiple units, saving civil engineering resources. Low power consumption with high separation efficiency.
· Low clogging risk: Excellent filtration significantly reduces pollutant concentration in wastewater.
· Reduces subsequent wastewater treatment costs;
· High corrosion resistance, reliability, and extended service life;
· Diverse models and comprehensive range. Single-unit treatment capacity ranges from 10 to 300 m³/h. Screen mesh aperture ratios are large, with gaps from 0.3 mm to 3.0 mm. Treatment capacity increases proportionally as screen spacing increases.

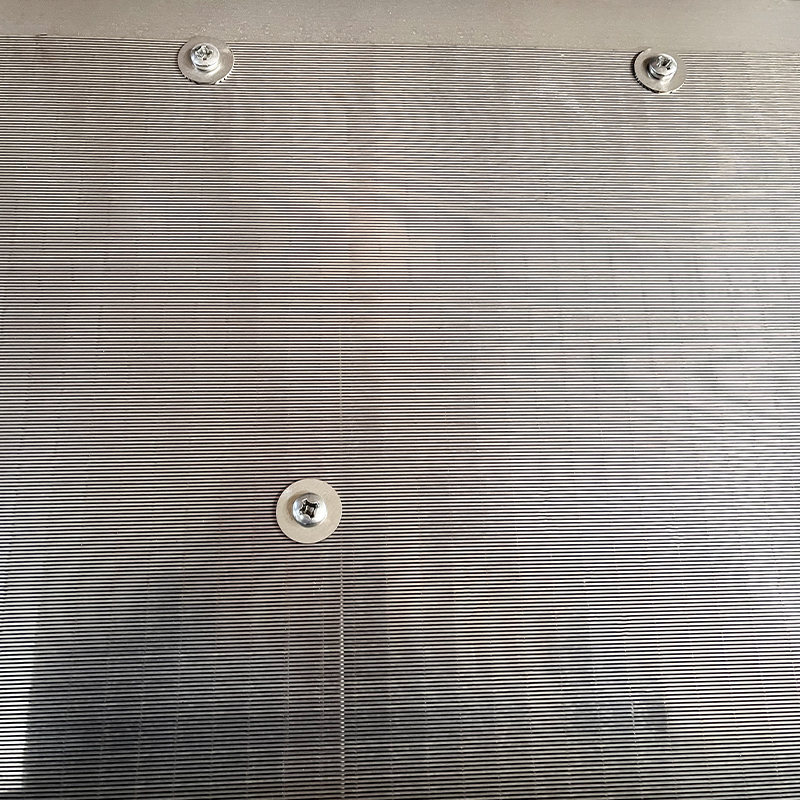

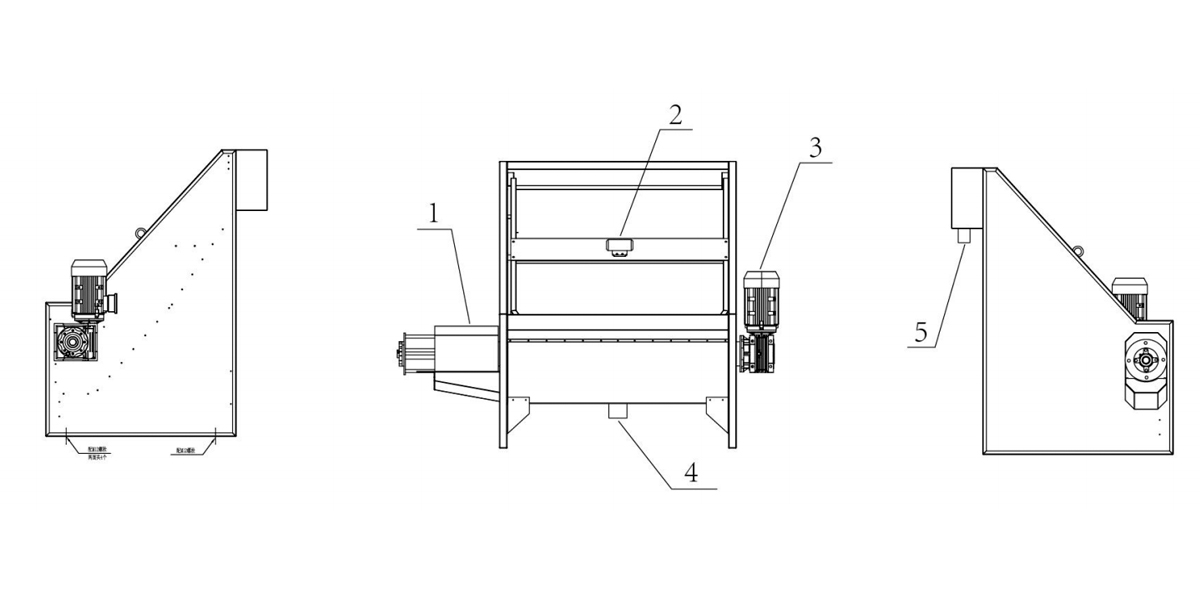

Wastewater first enters through the inlet pipe, overflows into the trough, and then passes through the fine mesh surface of the hydraulic screen to filter out floating matter and solid suspended solids. Under the combined action of water flow and gravity, these materials gradually slide down into the collection tank. The wastewater then flows through the gaps of the wedge-shaped fine screen into the bottom of the hydraulic screen, exiting through the outlet to proceed to subsequent wastewater treatment processes.
